Guchi's independently developed electric nozzle is an integrated electrical solution tailored for the typhoon cleaning system and has been granted a national invention patent. This product combines high efficiency, stability, and intelligent control, addressing pain points such as the coupling of air pressure and cleaning effectiveness, excessive power consumption and noise, and the inability to adjust individual nozzle speeds compared to traditional pneumatic nozzles. It also supports personalized settings and the MES system.

I. Comparison Between Pneumatic Nozzles and Electric Nozzles

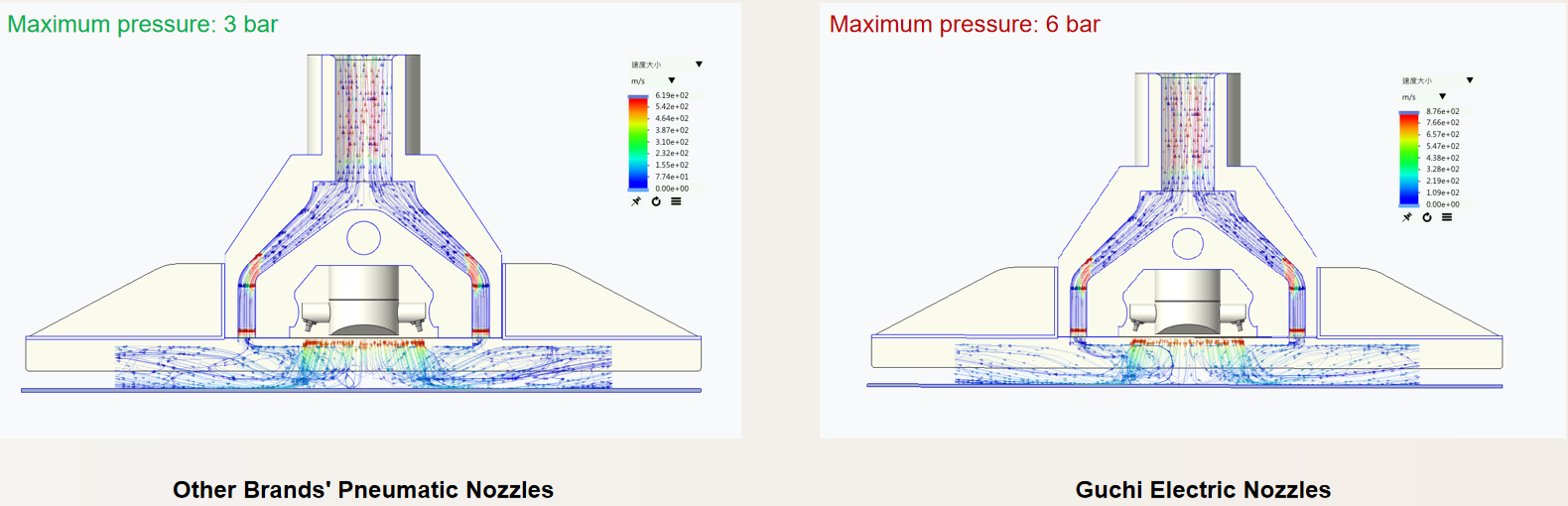

(I) Comparison Based on Simulation Experiments

(II) Comparison of the Impact of Different Air Pressures on Wind Speed at Various Cleaning Heights

(III) Summary of Advantages

        1. High Efficiency and Stable Drive
                Utilizes brushless DC motor drive, ensuring smooth operation, high reliability, and long service life.
        2. Precise Speed Adjustment Across a Wide Range
                Speed can be flexibly adjusted within the range of 600 to 6000 rpm, precisely matching the requirements of various cleaning tasks from gentle to intense.
        3. Adjustable Air Intake Pressure
                Air intake pressure can be flexibly adjusted according to the actual needs of the cleaning object, with a supported range of 0.1~0.7 MPa. This achieves a high-quality dynamic balance between cleaning effectiveness and energy consumption.
        4. Energy Saving, Eco-Friendly, Quiet, and Efficient
                Nozzle power is below 20W, with extremely low energy consumption, aligning with green energy-saving concepts. Strictly complies with ISO standards, supports explosion-proof and flame-retardant features. Additionally, customizable soundproofing cotton ensures the overall machine noise does not exceed 70dB at a distance of 1 meter.
        5. Intelligent Centralized Control
                A single nozzle controller can centrally control up to 8 electric nozzles, enabling efficient management. The controller, via a 485 communication interface, allows for remote setting of each nozzle's speed and real-time reading of its operational status data. It also supports MES integration for data exchange.
        6. Personalized Scenario Customization
                Supports independent speed setting for each nozzle to meet differentiated cleaning requirements in complex systems or multi-scenario applications.
II. Electric Nozzle Selection Guide

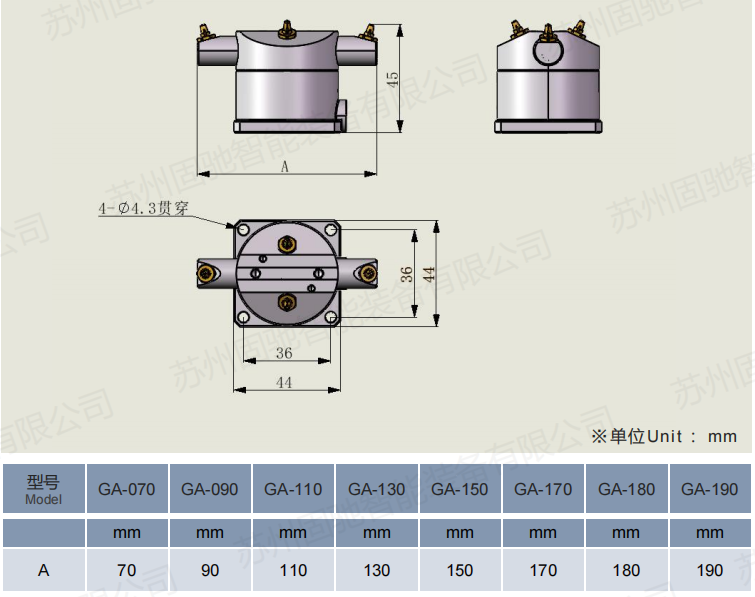

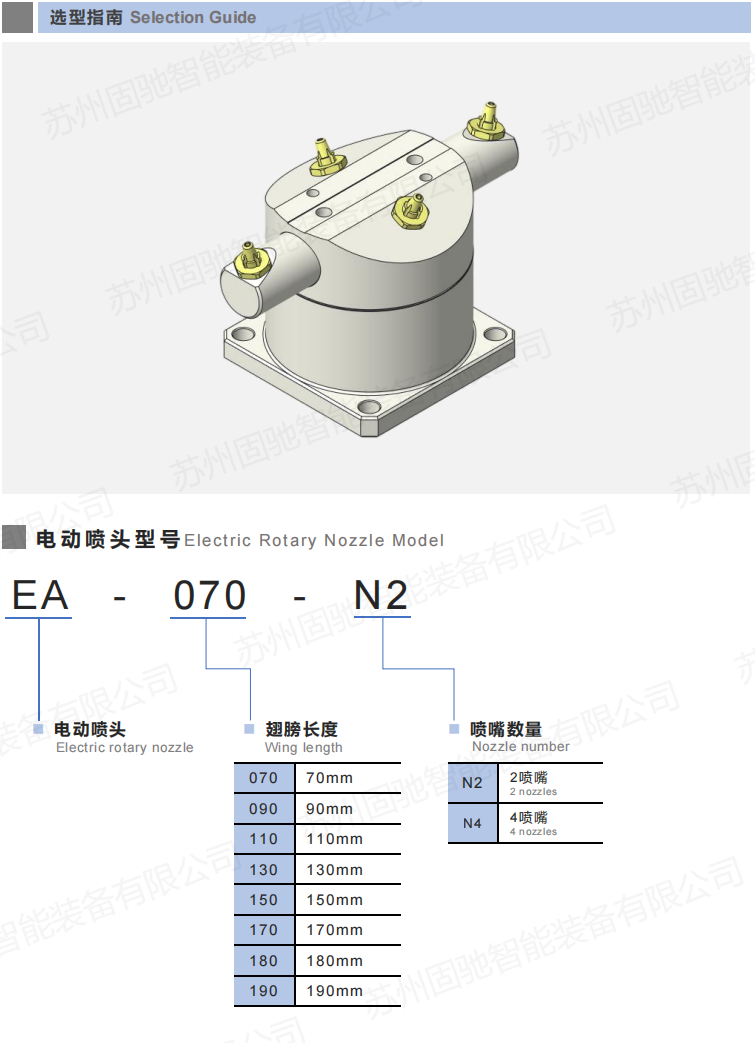

(I) Electric Nozzle Guidelines

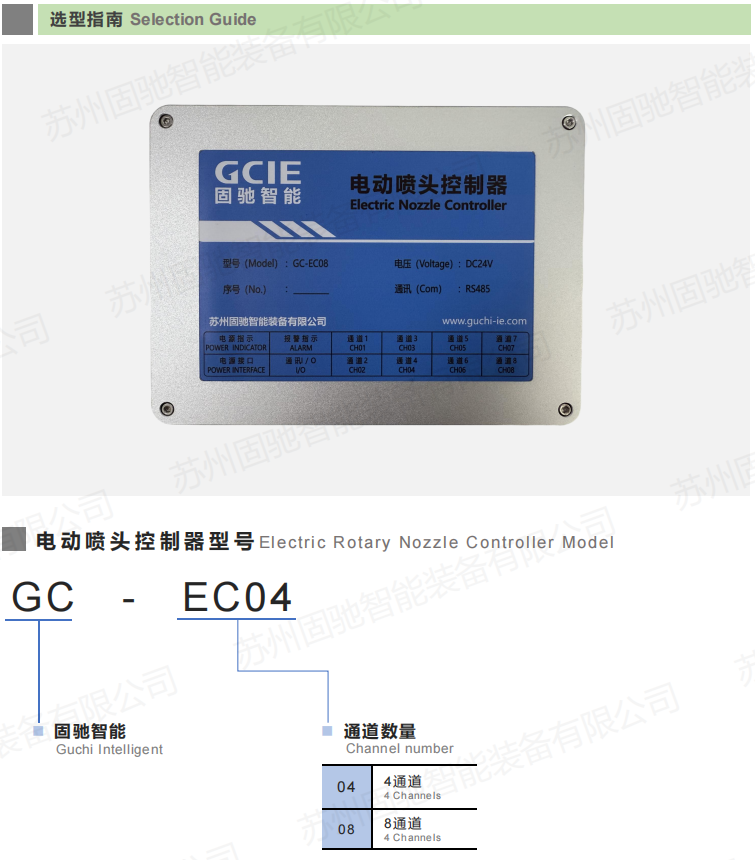

(II) Electric Nozzle Controller Guidelines

        If you have any further questions about the electric nozzle or would like to learn more about our products, feel free to contact us via any preferred method. We are more than happy to assist you.
